Install Script Schema

Install scripts are JSON objects with the following structure:

Root Properties

• version (required): Schema version. Must be 1 or 2.
• requirements (optional): System requirements that are validated before installation
• installation_questions (optional, introduced in version 2): Array of questions to ask the user during installation
• ensure_directories_exists (optional): Array of directories to create before installation
• ensure_permissions_exists (optional): Array of permission modifications for specific paths
• app_values (required): Configuration object passed directly to TrueNAS API

Example Structure

{
  "version": 2,
  "requirements": {
    "locations": ["ApplicationsPerformance", "Photos"],
    "specifications": ["2CORE", "200MB"],
    "permissions": ["READ_WRITE_LOCATIONS"],
    "ports": []
  },
  "installation_questions": [
    {
      "question": "Database Password",
      "description": "A secure password for the PostgreSQL database.",
      "type": "text",
      "key": "db_password",
      "required": true,
      "default": "$RANDOM_STRING(16)"
    },
    {
      "question": "Enable GPU acceleration for machine learning?",
      "description": "GPU acceleration significantly improves photo recognition speed but requires compatible hardware.",
      "type": "select",
      "key": "gpu_passthrough",
      "required": true,
      "options": [
        {
          "text": "Yes - Use GPU for faster photo recognition",
          "value": true
        },
        {
          "text": "No - Use CPU only",
          "value": false
        }
      ],
      "default": false
    },
    {
      "question": "Web Port",
      "description": "The port number where the web interface will be accessible.",
      "placeholder": "2283",
      "type": "number",
      "key": "web_port",
      "required": false,
      "default": 2283
    }
  ],
  "ensure_directories_exists": [
    "/path/to/directory",
    {
      "path": "/path/with/options",
      "network_share": true,
      "posix": true
    }
  ],
  "ensure_permissions_exists": [
    {
      "path": "/path/to/set/permissions",
      "username": "netdata",
      "access": "read",
      "posix": { "groupname": "docker" }
    }
  ],
  "app_values": {
    "network": {
      "web_port": {
        "bind_mode": "published",
        "port_number": "$QUESTION(web_port)"
      }
    },
    "resources": {
      "gpus": {
        "use_all_gpus": "$QUESTION(gpu_passthrough)"
      }
    }
  }
}

Requirements

The requirements object defines system requirements that HexOS validates before allowing app installation. This ensures users have properly configured their system with the necessary locations, resources, and permissions.

Requirements Object Properties:

• locations (array): Required folder locations that must be configured in HexOS Settings
• specifications (array): Minimum hardware/resource specifications needed
• permissions (array): Special permissions the app needs
• ports (array): Network ports that must be available

Locations

Locations are folder paths configured in HexOS Settings → Locations. Each location maps to a specific use case:

Available Locations:

• ApplicationsPerformance: High-performance storage for app data (typically SSD)
• ApplicationsCapacity: High-capacity storage for app data (typically HDD)
• Media: General media files
• Photos: Photo library storage
• Music: Music library storage
• Movies: Movie library storage
• Shows: TV show library storage
• Videos: Video library storage
• Downloads: Download directory
• Documents: Document storage
• Backups: Backup storage

Important: Every $LOCATION() macro used anywhere in your install script (in ensure_directories_exists, app_values, etc.) must be listed in the locations requirements array.

Example:

{
  "requirements": {
    "locations": ["ApplicationsPerformance", "Photos", "Media"]
  },
  "ensure_directories_exists": [
    "$LOCATION(ApplicationsPerformance)/immich/config",
    "$LOCATION(Photos)/immich"
  ],
  "app_values": {
    "storage": {
      "config": "$HOST_PATH($LOCATION(ApplicationsPerformance)/immich/config)",
      "photos": "$HOST_PATH($LOCATION(Photos)/immich)",
      "additional_storage": [
        "$MOUNTED_HOST_PATH($LOCATION(Media), /media)"
      ]
    }
  }
}

Specifications

Hardware and resource specifications ensure the system meets minimum requirements:

Available Specifications:

• 100MB, 200MB, 500MB, 1GB, 2GB: Minimum storage space needed
• 1CORE, 2CORE, 4CORE, 8CORE: Minimum CPU cores required
• GPU: Requires GPU hardware (for transcoding, ML, etc.)

Example:

{
  "requirements": {
    "specifications": ["2CORE", "200MB", "GPU"]
  }
}

Permissions

Special permissions that the app requires to function:

Available Permissions:

• READ_WRITE_LOCATIONS: App needs read/write access to configured locations

Example:

{
  "requirements": {
    "permissions": ["READ_WRITE_LOCATIONS"]
  }
}

Ports

Network ports that the application will use. HexOS can validate port availability before installation.

Example:

{
  "requirements": {
    "ports": [8080, 8443]
  }
}

Complete Requirements Example

{
  "version": 2,
  "requirements": {
    "locations": [
      "ApplicationsPerformance",
      "ApplicationsCapacity",
      "Media",
      "Photos",
      "Music",
      "Movies",
      "Shows",
      "Videos"
    ],
    "specifications": ["2CORE", "200MB", "GPU"],
    "permissions": ["READ_WRITE_LOCATIONS"],
    "ports": [32400]
  }
}

Requirements Validation

When users attempt to install an app, HexOS performs the following checks:

1. Location Validation: Verifies that all required locations are configured in Settings → Locations

   • If a location is not configured, it will be marked as "unmet"
   • Users must configure missing locations before installation can proceed
   • The install script's ensure_directories_exists will create subdirectories within configured locations

2. Specifications Check: Validates system meets minimum hardware requirements (coming soon)

3. Permissions Check: Confirms the app has necessary permissions (coming soon)

4. Port Availability: Validates required ports are available (coming soon)

Important: The ensure_directories_exists section of your install script will only create subdirectories and files. It does not create the base location paths themselves. Users must configure these locations in HexOS Settings first, and your requirements validation ensures this happens before installation begins.

Installation Questions

Installation questions allow you to prompt users for configuration values during app installation. Question responses can be referenced in app_values using the $QUESTION(key) syntax.

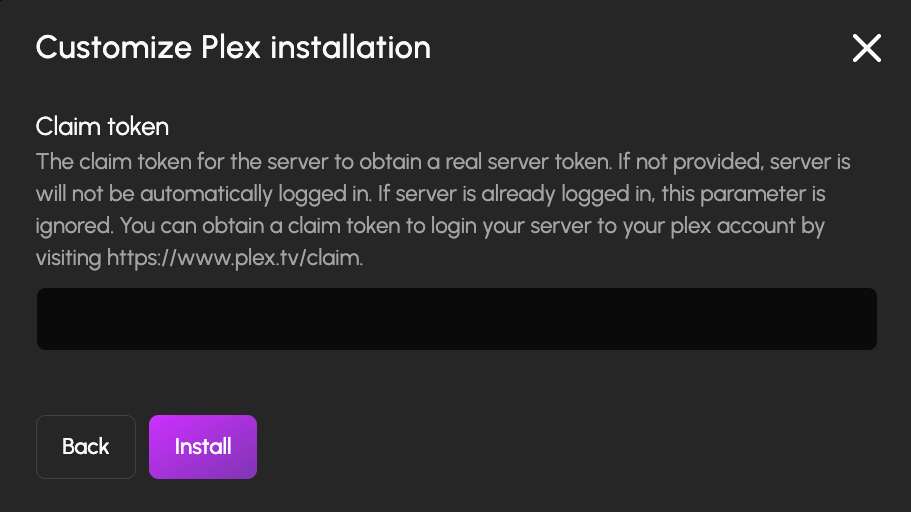

Example of installation questions displayed during app installation

Question Object Properties:

• question (required): The question text shown to the user
• description (optional): Additional help text explaining the question
• placeholder (optional): Placeholder text for input fields
• type (required): Question type - one of:
  • "text": Text input field
  • "number": Numeric input field
  • "select": Dropdown/selection with predefined options
  • "boolean": True/false toggle
• key (required): Unique identifier used to reference the answer with $QUESTION(key)
• options (required for select type): Array of option objects with text and value properties
• required (optional): Whether the question must be answered (default: false)
• default (optional): Default value or special syntax like $RANDOM_STRING(16)

Using Question Responses:

Reference question responses in your app_values using the $QUESTION(key) syntax:

{
  "installation_questions": [
    {
      "question": "Web Port",
      "type": "number",
      "key": "web_port",
      "default": 8080
    }
  ],
  "app_values": {
    "network": {
      "web_port": {
        "port_number": "$QUESTION(web_port)"
      }
    }
  }
}

Directory Creation

• String format: Simple path string
• Object format:
  • path: Directory path (required)
  • network_share: Boolean, whether to expose as network share
  • posix: Boolean, whether to use POSIX permissions

Permission Management

Required for apps that need specific user/group permissions (like PostgreSQL).

• path: Directory path to modify
• username: User to grant access to
• access: Access level ("read", "write", etc.)
• posix: Object with additional POSIX settings (e.g., groupname)

App Values

This object is passed directly to TrueNAS's app installation API. The structure varies by application and corresponds to the app's configuration schema in the TrueNAS apps repository. For example, you can see Plex's schema for the storage property here.
